Tecnoelettra Control Panel

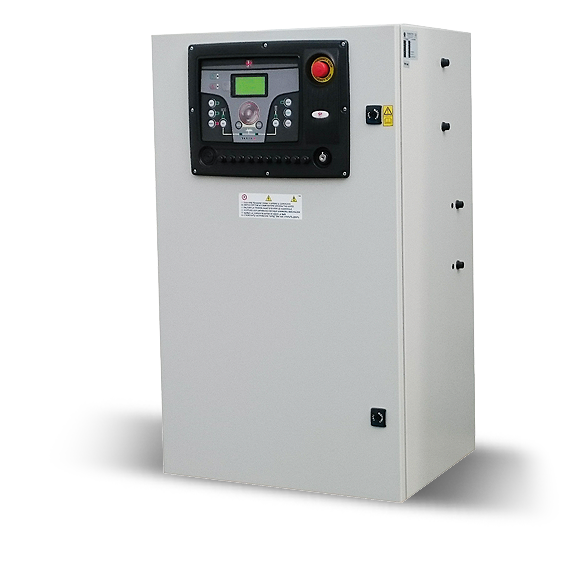

Tecnoelettra AT809A 173kVA 3Ph Generator Control Panel – Automatic Mains Failure

R37,490.00 Inc VAT

  • The AT809 range of generator control panels is a a complete solution for automating your generator control.Making use of the TE809 controller the AT809A is extremely versatile and is ideal from controlling diesel powered generators.



This product has FREE SHIPPING.



In stock

SKU: AT809AT40173BZA Category:
Tecnoelettra

Specifications

The AT809AT40173BZA control panel comes complete with the following equipment:

  • TE809A AMF Controller
    •  TRMS high precision measures
    • Graphical display 128×64 pixels
    • 8 buttons  navigation drive
    • 10 indication LEDs
    • 5 programmable digital inputs
    • 3 analog / digital inputs programmable
    • Programmable static outputs
    • 2 relay outputs
    • CANBUS J1939
    • RS232 and RS485 serial ports for remote monitoring
  • 12VDC 5A Battery Charger
  • Metal enclosure IP55
  • 4 pole contactor ATS with electrical and mechanical interlocks
  • 4 pole mains isolator
  • 4 pole generator isolator
  • 3 load CTs
  • 1 switch 1Ph + N engine preheating 230Vac / 10A
  • 10 protection fuses
  • Emergency Stop
  • Alarm buzzer
